Dry Ice Production Machines

Dry ice production machines

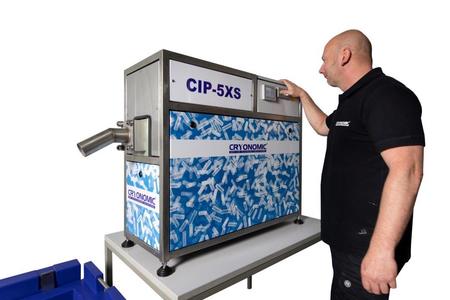

CIP-5 Series CRYONOMIC Pelletizers offer a versatile and economical solution for your local dry ice business. Our machines have production capacities of 35 to 300 kg/h. The hygienic food-grade CIC Series CRYONOMIC dry ice containers with capacities of 26 to 440 kgs have been designed for storage of dry ice and cooled transport of other products such as vaccines, medical samples, food e.t.c.

Download CIP-5 series product catalogue

What is dry ice?

Dry ice is the solid form of CO2 with a temperature of -79°C. Carbon dioxide (CO2) doesn't exist as a liquid at room temperature and at atmospheric pressure. So dry ice doesn't melt (hence it is "dry") but sublimates - meaning that the CO2 goes directly from solid to gas as it absorbs heat. For cleaning purposes dry ice in the form of 3 mm diameter pellets are most commonly used. For cooling and catering purposes, we recommend 10 mm or 16 mm diameter pellets.

Download dry ice applications

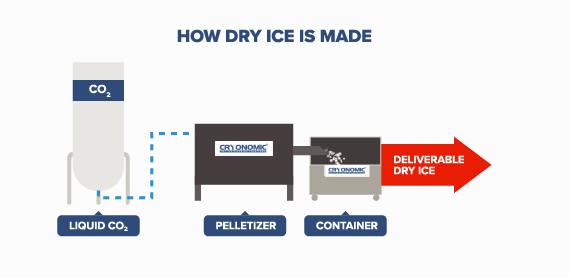

How is dry ice made?

Dry ice pellets are made from liquid CO2 stored in a pressurized tank. When expanding the liquid CO2 forms snow, this snow is compressed and extruded through an extruder plate giving the final dimensions of the dry ice pellets. Dry ice pellets are made by our Cryonomic dry ice production machine, also known as Pelletizer.

We offer complete dry ice production solutions including installation, commissioning and maintenance. Pelletizers come with exchangable 3mm, 10mm or 16mm extruder plates and spare part set. Hydraulic oil is packaged seperately and only dispensed in to the machine during commissioning.

Download catalogue for more details

Food-grade dry ice containers

The hygienic food-grade CRYONOMIC well isolated thermoplastic containers with a K-value of 0,29 W/m²K are designed for storage and transport of dry ice and are also suited for other products that require cooled transport. CIC-series combines the quality and hygiene of the monobloc structure in polyethylene with the use of stainless steel reinforcements. Available with wheels and on pallet options.

Download CIC series product catalogue
